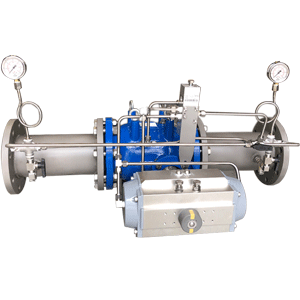

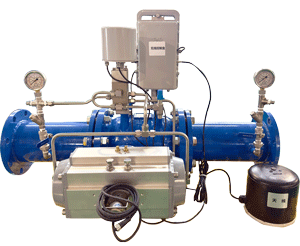

Smart Valve
DN100-2000, PN10-40

Pressure control for the pipe network

DMA valve control for different areas

Pipe burst protection combined with daily regulation

Water discharged at the bottom of the dam

Energy dissipating/regulating reservoir control

main features

• The linear channel keeps the flow stable behind the valve
• Symmetric of circular fluid cross section reduces the risk of cavitation
• Weld overlay rail with good performance of wear resistance and corrosion resistance
• Customized outlet depending on operating conditions
• To prevent the control loop from being blocked, a self-flushed filter can be optionally installed when the water quality is bad.
• Large flow regulating range
• Low power consumption pressure transmitters for the upstream and downstream pressure
• Visual monitoring of pressure before and after valve
• Monitor for unnormal working status, pipe burst protection
• Optional wireless control system can realize remote wireless contro
• Simple maintenance and reliable operation

other features

•

  Online Platform

  • Intergrated valve online platform, stable and reliable
  • Easy storage and check
  • Direct display of vector map
  • Alarm information can be customized
  • 72 Time point command format

•

  antenna

  • The ground antenna is suitable for city streets
  • High gain antenna suitable for field

•

  Controller

  • Integrated pressure transmitter, temperature sensor
  • CAT-1 communication, MQTTS Encryption protocol
  • IP 68 waterproof
  • The battery can be used for 2 years under good working condition
