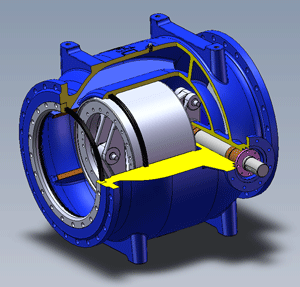

Plunger Valve
DN150-2000, PN10-40

Long distance water distribution

The discharge of dam

Accurate aeration

Pipe network control

Other special applications

main features

• With flange ends on both sides acc. to EN 1092-2
• Control valve in straightway type
• Valve piston force balance, low operating torque
• The flow is circular in cross-section
• Axial movement of the plunger by means of crank
• With self-locking worm gear unit including position indicator
• Double sealing structure
• Brass weld overlay rail, wear-resistance
• The outlet can be customized according to the working conditions

other features

•

  MATERIAL

  • Body：Ductile iron EN-JS1030(GGG-40)
  • Plunger rail: Aluminum bronze weld overlay
  • Plunger: Stainless steel 1.4301
  • Bushing: Brass
  • Sealing ring: EPDM

•

  ACTUADOR

  • Handwheel
  • Electric actuator
  • Hydraulic control actuator
  • Wind-solar hybrid DC electric actuator

•

  protect

  • Body: Epoxy coated both inside and outside
